8-piece rod kit for P3Steel - 8 mm smooth and M5 threaded rods
17.00€
Ex Tax: 14.05€
- Stock: In Stock
- Model: P3Steel-Varillas

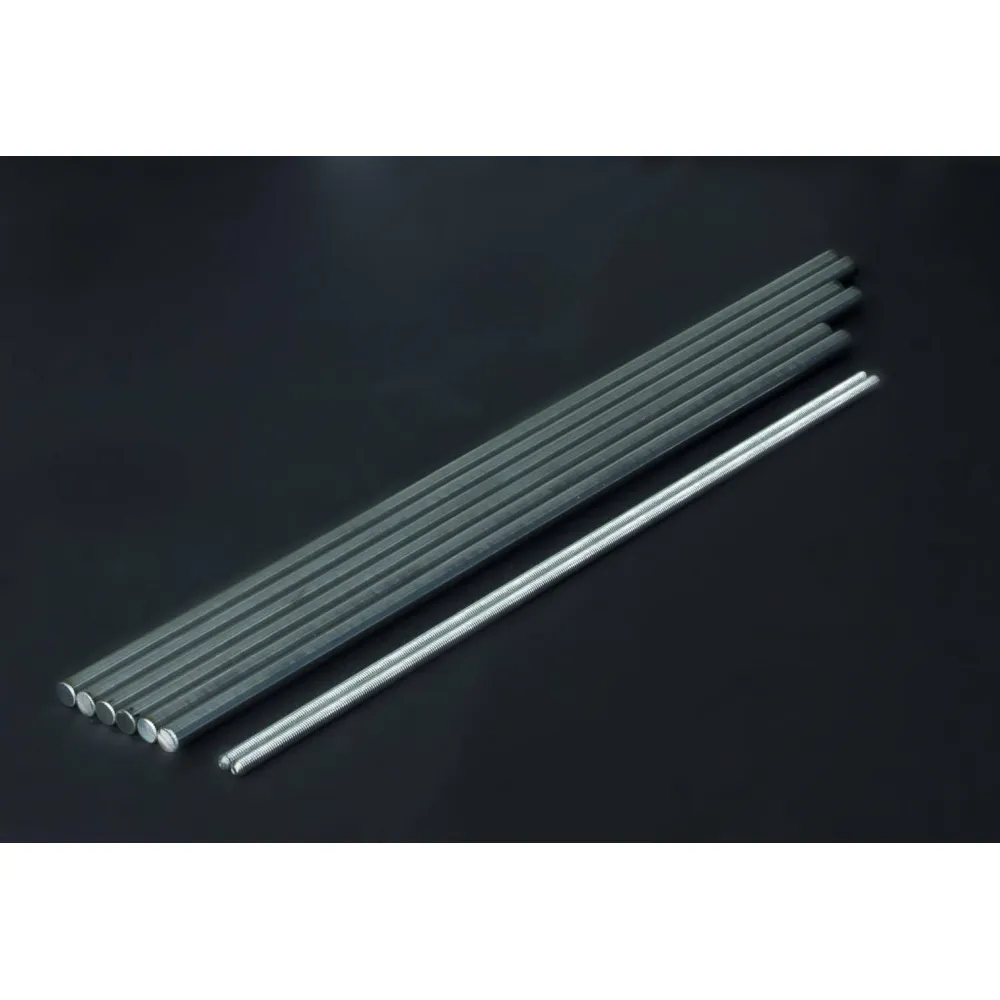

Complete set of 8 frame and motion rods for a P3Steel. It includes six calibrated 8 mm stainless-steel smooth rods and two M5 stainless-steel threaded rods for Z-axis motion.
Kit contents
| Quantity | Type | Nominal length |
|---|---|---|
| 2 | Calibrated Ø8 mm smooth rod | 375 mm |
| 2 | Calibrated Ø8 mm smooth rod, P3Steel 2.01 configuration | 350 mm |
| 2 | Calibrated Ø8 mm smooth rod | 320 mm |
| 2 | M5 threaded rod | 295 mm |
The smooth rods are suitable for LM8UU bearings for 8 mm shafts. Every piece is supplied deburred; manual cutting may leave approximately 1 mm extra length, but never less than the nominal dimension.
Compatibility
Prepared for the P3Steel configuration using these dimensions, including the two 350 mm rods specified for revision 2.01. Compare diameters, lengths and support spacing with the documentation before fitting them to another revision or derivative.
This product is for you if
- Your P3Steel uses this exact composition.
- You want one set containing both smooth guides and Z-axis threaded rods.
This product is not for you if
- Your variant uses trapezoidal lead screws, different diameters or different lengths.
- You also require bearings, couplers, nuts or supports; these are not included.
