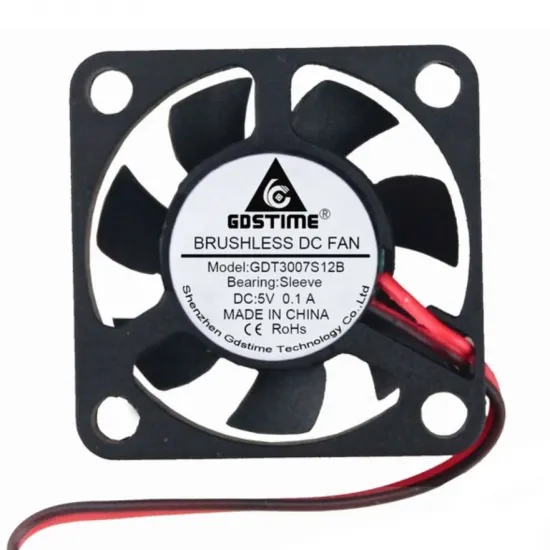

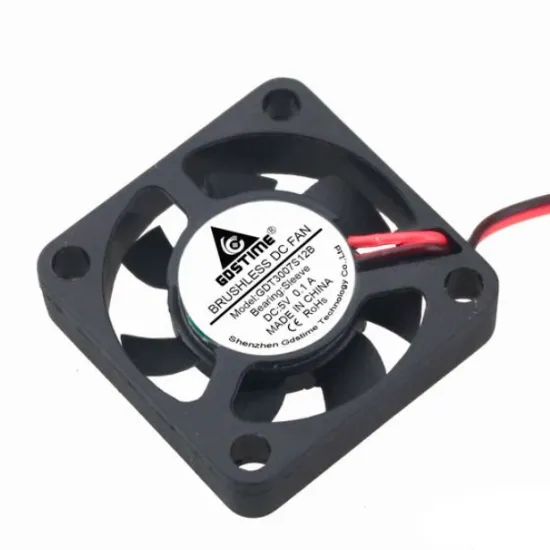

GDSTIME 3007 5V Sleeve Bearing Axial Fan with 15 cm Cable

GDSTIME 3007 5V axial fan with compact 30 × 30 × 7 mm dimensions, a sleeve bearing and a 15 cm cable. It is intended for cooling small electronic devices and mechanisms where there is insufficient space for a 10 mm thick fan.

Unlike a centrifugal blower, this fan moves air along its axis. It is suitable for circulating air directly through heatsinks, electronic boards and small compartments with low airflow resistance.

Key features

• Brand: GDSTIME.
• Type: brushless axial fan.
• Nominal format: 3007.
• Dimensions: 30 × 30 × 7 mm.
• Rated voltage: 5V DC.
• Rated speed: 9000 RPM ±10%.
• Rated airflow: 2.72 CFM.
• Rated noise level: 28 dBA ±10%.
• Sleeve bearing.
• 2-pin XP2.0 connector.
• Approximate cable length: 15 cm.
• Approximate weight: 6.1 g.

Applications

• Cooling electronic boards and controllers.
• Small heatsinks and drivers.
• Single-board computers and compact devices.
• Robotics, automation and electronic projects.
• Equipment requiring a fan only 7 mm thick.

Compatibility

It can be used in equipment designed for 3007 5V axial fans, provided that the dimensions, mounting-hole positions, connector and polarity all match.

The 3007 format defines nominal dimensions of 30 × 30 × 7 mm but does not guarantee compatibility with every bracket. Space around the cable and the required airflow direction must also be checked.

Do not connect this fan directly to a 12V or 24V output. Where additional airflow and space are available, consider the 6010 5V axial fan, taking into account its different dimensions and mounting pattern.

Installation

Check the 5V supply and polarity before connection. The physical connector must not be treated as the sole indication of compatibility, as different equipment may use the same housing with a different wire order.

When using electronic speed control, verify reliable startup at the configured minimum setting. Do not connect the fan directly to a signal pin that is not designed to power the load.

Package contents

• 1 × GDSTIME 3007 5V axial fan with 15 cm cable.
