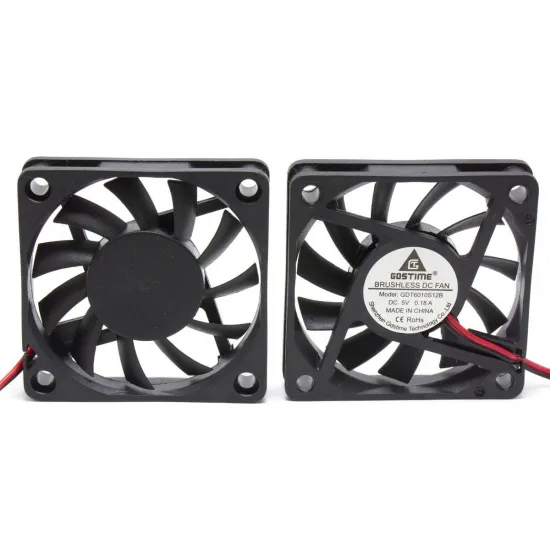

GDSTIME 6010 5V 11-Blade Axial Fan with XH2.54 Connector

GDSTIME 6010 5V axial fan with an 11-blade impeller, a 2-pin XH2.54 connector and an approximately 20 to 25 cm cable. Its 60 × 60 × 10 mm format provides direct cooling while maintaining a slim profile.

It is suitable for electronic boards, single-board computers, small enclosures and other 5V devices requiring air circulation with low airflow restriction.

Key features

• Brand: GDSTIME.
• Type: brushless axial fan.
• Nominal format: 6010.
• Dimensions: 60 × 60 × 10 mm.
• Rated voltage: 5V DC.
• Rated current: 0.18A ±10%.
• Rated speed: 2800 RPM ±10%.
• Rated airflow: 16 CFM.
• Rated noise level: 22 dBA ±10%.
• 11-blade impeller.
• 2-pin XH2.54 connector.
• Approximate cable length: 20-25 cm.
• Approximate weight: 24 g.

Applications

• Cooling electronic boards.
• Single-board computers and 5V devices.
• Small enclosures and compartments.
• Robotics, automation and electronic projects.

Compatibility

It can be used in equipment designed for 6010 5V axial fans when the dimensions, mounting-hole pattern, connector, polarity and power-supply current capacity all match.

Do not connect this fan directly to a 12V or 24V output. The XH2.54 connector alone does not guarantee electrical compatibility, as wire order may vary.

For 24V installations, see the 6010 24V axial fan, which is dimensionally but not electrically compatible.

Installation

Check the 5V supply and polarity before connection. The selected output must support the fan's operating and starting current.

When using electronic speed control, verify reliable startup at the configured minimum setting. Do not power the fan directly from a signal pin that is not designed for this load.

Package contents

• 1 × GDSTIME 6010 5V axial fan.
