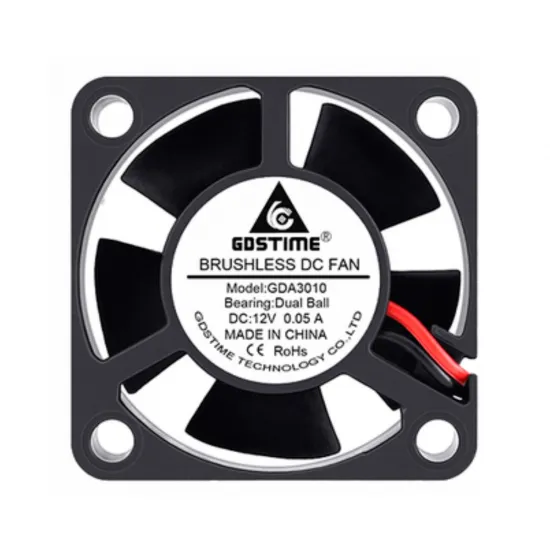

GDSTIME 3010 12V Dual Ball Bearing Axial Fan with 1 m Cable

GDSTIME 3010 12V axial fan with dual ball bearings and a 1 metre cable. Its 30 × 30 × 10 mm format provides direct cooling for hotends, small heatsinks and compact electronic equipment.

The dual ball bearing system is particularly suitable for extended operation, higher temperatures or mounting positions where reduced wear is preferred over a basic sleeve-bearing fan.

Key features

• Brand: GDSTIME.
• Model: GDA3010.
• Type: brushless axial fan.
• Nominal format: 3010.
• Dimensions: 30 × 30 × 10 mm.
• Rated voltage: 12V DC.
• Rated current: 0.05A.
• Rated speed: 12000 RPM.
• Rated airflow: 4.7 CFM.
• Rated noise level: 27.46 dBA.
• Bearing system: dual ball bearing.
• Two-wire connection.
• Approximate cable length: 1 m.
• Approximate weight: 8 g.

Applications

• Hotend heatsink cooling.
• Electronics and small heatsinks.
• Frequently or continuously operated equipment.
• 3D printers, robotics and automation.

Compatibility

It can be used as a replacement or upgrade in many systems designed for 3010 12V axial fans. Dimensions, mounting arrangement, available space, connector, polarity and airflow direction must all match.

The higher speed and ball bearing system may improve reliability or cooling, but can also alter noise and airflow behaviour. It should therefore not be assumed to be the best option for every machine without considering its requirements.

For a more moderate standard option, see the 3010 12V standard axial fan. For 24V installations, see the GDSTIME 3010 24V ball bearing version.

Installation and speed control

Check the voltage and polarity before connection. When used on a hotend heatsink, ensure that the fan operates whenever the hotend may reach an elevated temperature.

When using PWM control, configure a minimum setting that guarantees reliable startup. Some high-speed fans may not start consistently at very low duty cycles.

Package contents

• 1 × GDSTIME 3010 12V dual ball bearing axial fan with 1 m cable.
