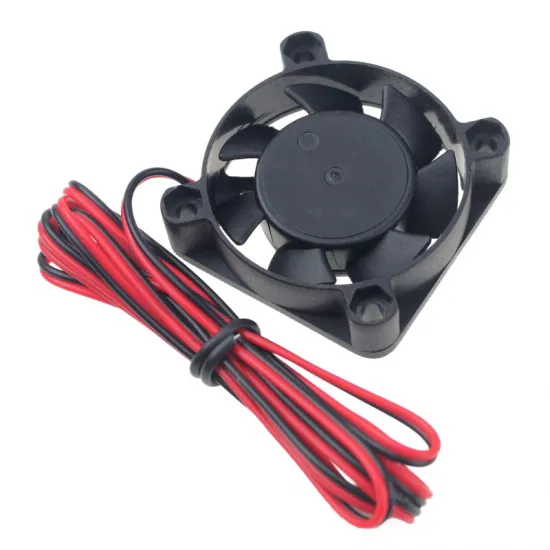

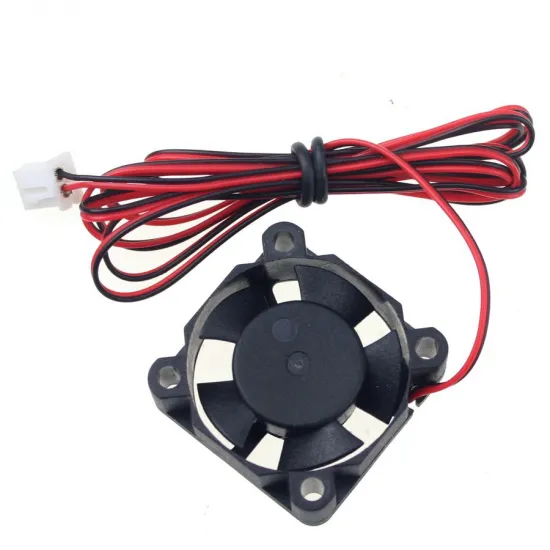

GDSTIME 3010 24V Ball Bearing Axial Fan with 1 m Cable

GDSTIME 3010 24V axial fan with a ball bearing system and a 1 metre power cable. Its 30 × 30 × 10 mm dimensions make it suitable for cooling hotends, small heatsinks and electronics in equipment with limited space.

The ball bearing system is intended for frequent or extended operation, particularly where reduced wear is preferred over a basic axial fan.

Key features

• Brand: GDSTIME.
• Type: brushless axial fan.
• Nominal format: 3010.
• Dimensions: 30 × 30 × 10 mm.
• Rated voltage: 24V DC.
• Rated speed: 10000 RPM.
• Rated airflow: 4 CFM.
• Rated noise level: 28 dBA.
• Ball bearing system.
• Two-wire connection.
• Approximate cable length: 1 m.

Applications

• Hotend heatsink cooling.
• Cooling electronics and small heatsinks.
• Equipment subject to extended operation.
• 3D printers, robotics and automation.

Compatibility

It can be used in many systems designed for 3010 24V axial fans, provided that the dimensions, mounting arrangement, polarity, connector and airflow direction all match.

The ball bearing system and higher speed may be advantageous in demanding applications, but do not make the fan a universal upgrade. Noise, required airflow and output current capacity should all be considered.

For a standard alternative, see the 3010 24V axial fan. For 12V systems, see the GDSTIME 3010 12V dual ball bearing fan.

Installation and speed control

Confirm that the machine supplies 24V and check the polarity before connection. Do not power the fan directly from a controller signal pin.

When using PWM control, configure a minimum value that ensures reliable startup. When cooling a hotend heatsink, prioritise stable operation to reduce the risk of heat travelling towards the filament inlet.

Package contents

• 1 × GDSTIME 3010 24V ball bearing axial fan with 1 m cable.
