- Stock: 15
- Model: V6DM-Heatsink
Model:
V6
V6 Compact
V6DM

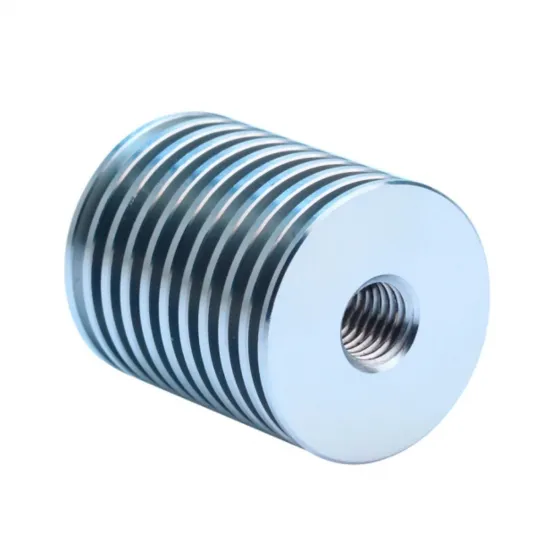

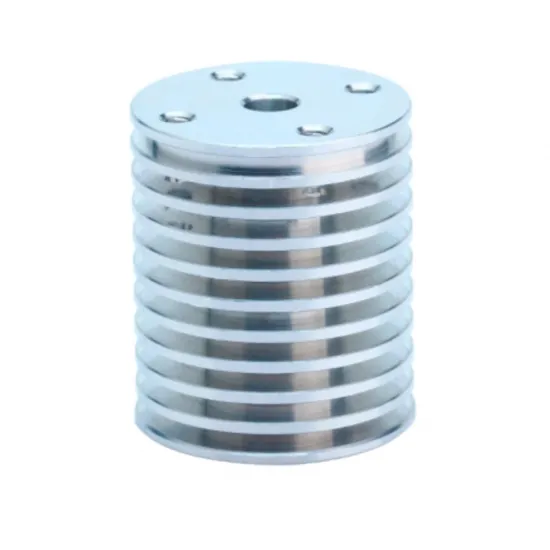

Compact Trianglelab V6DM aluminium heatsink for building a hotend with an M7 × 1 upper-thread heatbreak. Its cylindrical body measures approximately 22mm in diameter and 26mm high, allowing lightweight toolheads to be built around a direct four-screw M2.5 top mounting system.
Unlike a conventional V6 heatsink, it does not use a circular mounting groove. It bolts directly to the extruder or toolhead support, providing a compact and rigid connection when paired with a part designed for its mounting pattern.
Main features
- Brand: Trianglelab.
- Model: V6DM.
- Material: aluminium.
- Format: compact cylindrical heatsink.
- Lower heatbreak thread: M7 × 1.
- Nominal internal guide: 4.2mm.
- Top mounting: 4 × M2.5 screws.
- Mounting screws not included.
- Circular fins for forced-air cooling.

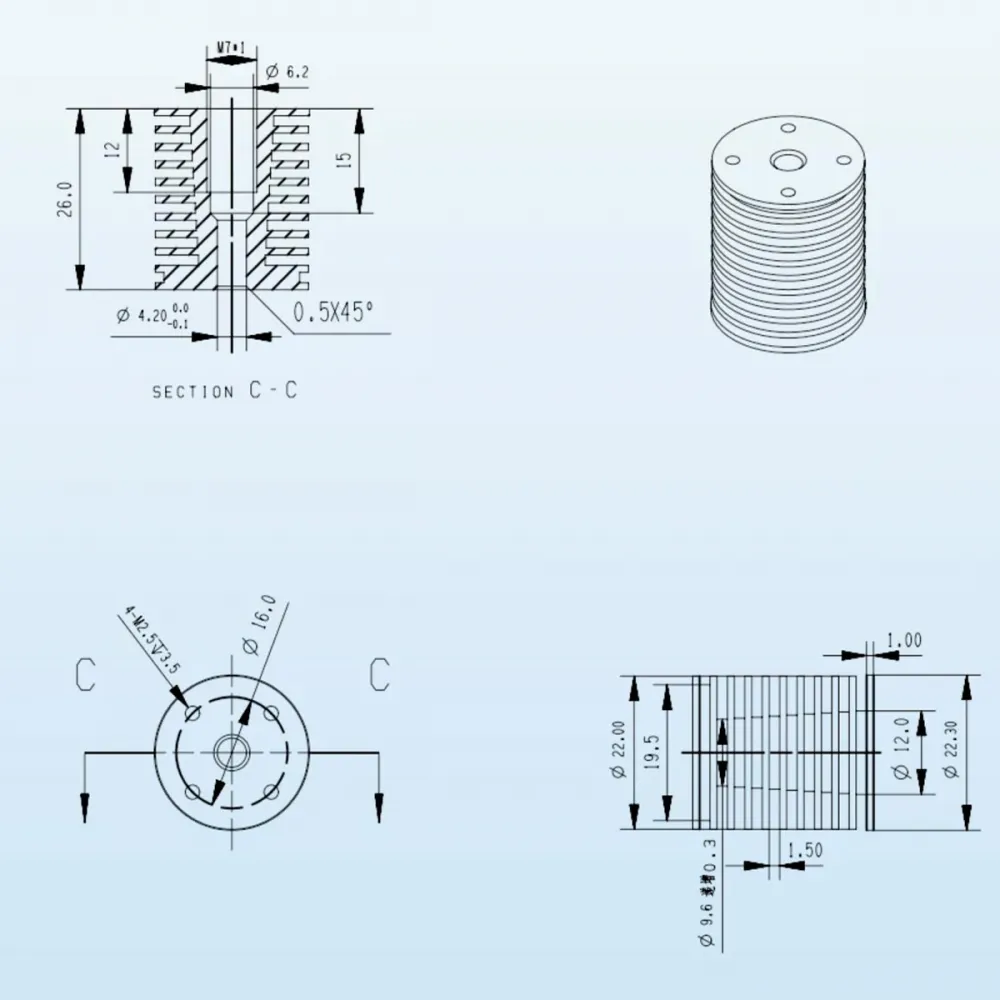

Nominal dimensions
- Body height: approximately 26mm.
- Finned-body diameter: approximately 22mm.
- Maximum upper-plate diameter: approximately 22.3mm.
- Internal guide diameter: 4.2mm.
- Lower thread: M7 × 1.
- Upper pattern: 4 × M2.5 threaded holes distributed on a nominal 16mm pitch circle.
Compatibility
Compatible with heatbreaks using an M7 × 1 upper thread and suitable length and geometry. Possible options include certain V6 all-metal heatbreaks, PTFE-lined V6 heatbreaks and compatible bimetal versions.
An M7 thread alone does not guarantee a correct combination. Also check:
- Heatbreak threaded length.
- Final heater-block position.
- Continuity and alignment of the filament path.
- Available cooling space.
- The support’s four-hole M2.5 mounting pattern.
Extruder and machine compatibility
It can be integrated into direct-drive extruders and custom toolheads with a dedicated V6DM support. It is not a direct replacement for every conventional groove-mounted V6 hotend.
Installation in a particular printer may require a printed or machined support, checking the complete hotend height and updating probe or part-cooling offsets.
Benefits of direct mounting
- Compact connection through four mounting points.
- No conventional V6 groove clamp is required.
- Can improve assembly rigidity when the support is correctly designed.
- Suitable for lightweight, low-profile toolhead designs.
Cooling and assembly
The fins require continuous airflow while the hotend is hot. The support must allow the fan to move air through the body without blocked areas.
- Check the M2.5 mounting pattern and required screw length.
- Tighten the heatsink progressively in a cross pattern.
- Do not use screws long enough to interfere with the interior or damage the body.
- Install a compatible M7 heatbreak.
- Check alignment through the complete filament path.
- Install and test cooling before heating the hotend.
Insufficient cooling can cause heat creep, premature filament softening and jams. The heatsink fan is separate from the part-cooling fan.
Other available heatsinks
- Compact V6 Bowden heatsink with integrated fitting.
- V6 Bowden heatsink with conventional groove mounting.
- Chimera-style dual heatsink.
Package contents
- 1 × Trianglelab V6DM aluminium heatsink.
M2.5 screws, heatbreak, heater block, nozzle, PTFE tube, fan and mounting support are not included.
