- Stock: 15
- Model: 12V 5A Adapter
External power adapter for LED lighting, displays, cameras, controllers and other equipment operating at 12 V DC. It can provide up to 5 A and 60 W nominal and accepts a wide-range 100-240 V AC, 50/60 Hz mains input.
Its enclosed housing, detachable IEC input and included European mains lead provide a clean installation. Compatibility requires a 12 V device, a load within the adapter's capacity, and a matching output connector and polarity.
Main specifications
| Marked model | G-XHH-12000500 |
|---|---|
| Input | 100-240 V AC, 50/60 Hz, 3 A max according to the marking |
| Output | 12 V DC, up to 5 A |
| Nominal power | 60 W |
| Adapter inlet | IEC C14 |
| Device output | Fixed cable with DC barrel connector |
How to check compatibility
A suitable power adapter must match four requirements:
- Voltage: the device must operate at 12 V DC.
- Current: its demand must be no more than 5 A, allowing headroom for continuous loads and startup peaks.
- Connector: the barrel connector's outer and inner diameters must match.
- Polarity: positive and negative must be arranged in the same way as on the device.
A 5 A rating does not force the connected device to draw 5 A. A compatible 12 V device requiring 1 A, 2 A or 3 A will draw only the current it needs.
Important: check the connector geometry and polarity before use. Do not select an adapter solely because another unit looks similar.
Typical applications
- 12 V LED strips, modules and controllers.
- Lighting for 3D-printed lamps, including shades made from translucent filament.
- 12 V CCTV cameras and small surveillance systems.
- Compatible displays, routers, controllers and electronic modules.
- Low-power 12 V automation projects.
For LED installations, add the consumption of every strip and controller. If the total approaches 60 W, choose a power supply with additional headroom.
This product is for you if...
- You need an enclosed external supply for a 12 V device.
- The complete load remains below 5 A.
- You have checked the connector dimensions and polarity.
- You prefer an included European mains cable and no exposed mains terminals.
This product is not for you if...
- The device operates at 5, 19, 24, 36 or 48 V.
- The load needs more than 5 A or has high startup peaks.
- You need voltage adjustment or screw terminals for several output branches.
- You need a battery charger: this requires a charging controller suitable for the battery chemistry and configuration.
Connections and package contents

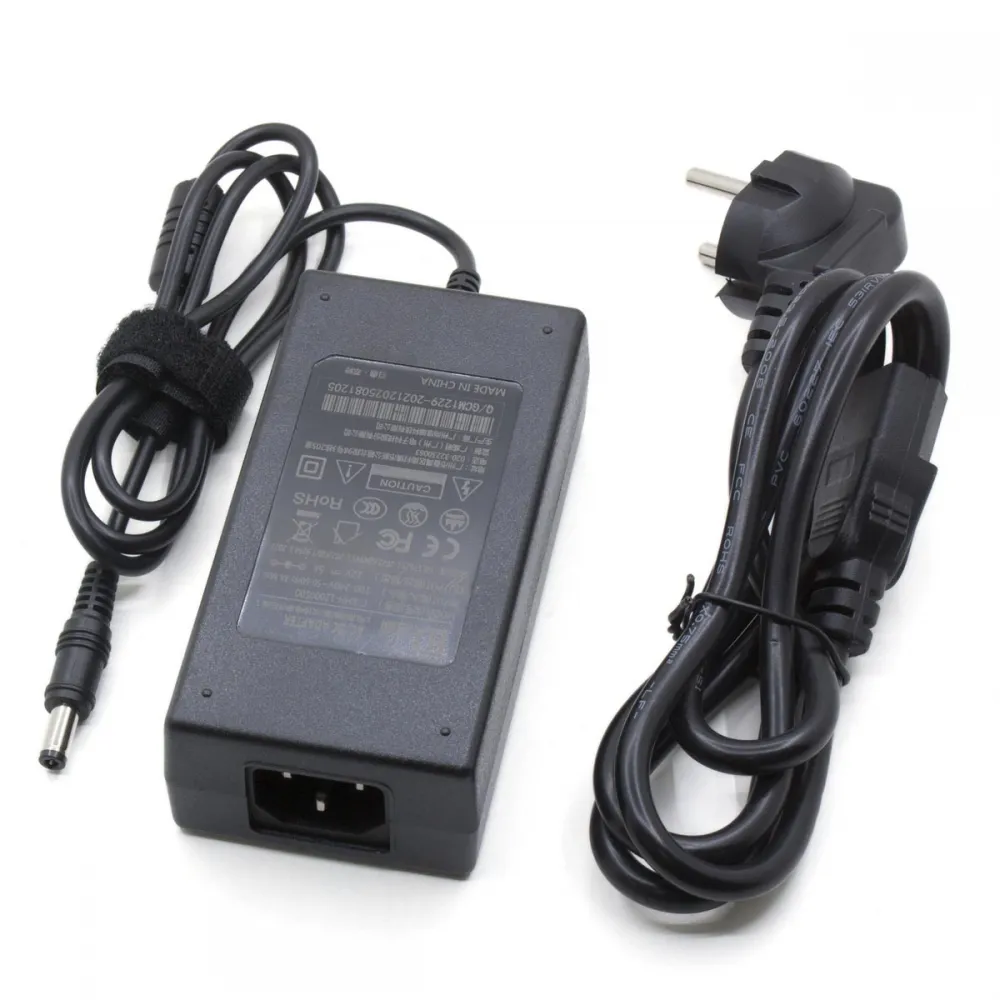

The adapter has an IEC C14 inlet and is supplied with a detachable European plug to IEC C13 mains cable. Its 12 V output uses a fixed cable ending in a DC barrel connector.
- 1 × 12 V, 5 A power adapter.
- 1 × European plug to IEC C13 mains cable.
Safe use
- Use indoors in a dry location with sufficient ventilation.
- Do not cover the adapter or place it next to strong heat sources.
- Make all connections with the mains cable disconnected.
- Do not open the enclosure or use the adapter if its cable, connector or housing is damaged.
- Before powering undocumented equipment, verify voltage and polarity with a multimeter.
Alternatives and accessories
- The S-60-12 12 V, 5 A and 60 W power supply provides the same nominal capacity in an open-frame format with screw terminals and fine adjustment for properly enclosed fixed installations.
- For additional headroom, consider the compact 12 V, 10 A power supply or the S-180-12 12 V, 15 A power supply.
- If the mains lead needs replacing, see the 1.5 m Schuko to IEC C13 cable.
