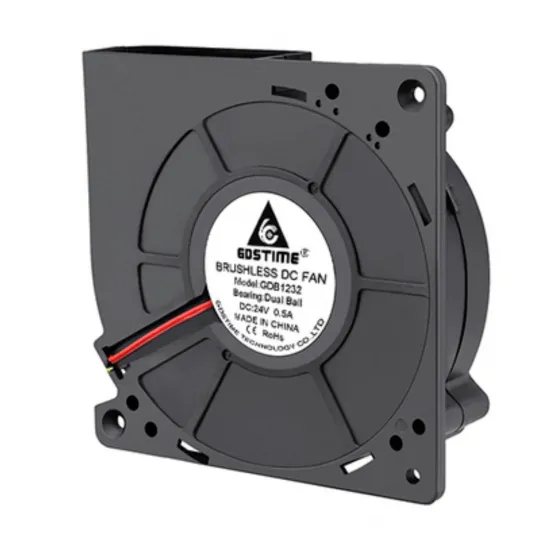

GDSTIME 12032 24V Dual Ball Bearing Blower Fan with 30 cm Cable

GDSTIME 12032 24V centrifugal blower fan with dual ball bearings, a 2-pin XH2.54 connector and a 30 cm cable. Its 120 × 120 × 32 mm format provides substantially more airflow than the compact blowers commonly used on print heads.

It is intended for ventilating enclosures, electronics, machines, filters and larger air ducts. Its dimensions and current consumption require a properly designed installation.

Key features

• Brand: GDSTIME.
• Model: GDB1232.
• Type: centrifugal blower fan.
• Nominal dimensions: 120 × 120 × 32 mm.
• Rated voltage: 24V DC.
• Rated current: 0.5A ±10%.
• Rated speed: 3000 RPM.
• Rated airflow: 32.6 CFM.
• Rated air pressure: 1.13 inH2O.
• Rated noise level: 49.6 dBA.
• Bearing system: dual ball bearing.
• 2-pin XH2.54 connector.
• Approximate cable length: 30 cm.
• Approximate weight: 213 g.

Applications

• Ventilation of 3D-printer and CNC-machine enclosures.
• Cooling electronics and power supplies.
• Air filtration and extraction systems.
• Ducts requiring greater airflow and pressure than a compact blower can provide.
• Automation and custom cooling projects.

Compatibility

Installation requires a bracket designed for the 12032 format and a 24V supply capable of providing the fan's running and starting current. Inlet and outlet orientation, mounting points and duct geometry must also be checked.

The XH2.54 connector must not be treated as the sole indication of compatibility. Check the polarity, wire order and current capacity of the connector and machine wiring before connection.

For installations where a simpler alternative is preferred, see the GDSTIME 12032 24V sleeve-bearing centrifugal blower fan. Selection should take operating hours, temperature and equipment requirements into account.

Installation and safety

Because its rated current is 0.5A, do not connect it directly to a signal pin or to an output whose capacity has not been confirmed. Use a suitable powered output or a correctly rated MOSFET stage.

When using PWM control, verify reliable startup and stable operation throughout the required range. In filtration systems, also check that the duct and filter do not restrict airflow beyond the intended operating conditions.

Package contents

• 1 × GDSTIME 12032 24V centrifugal blower fan with 30 cm cable.
