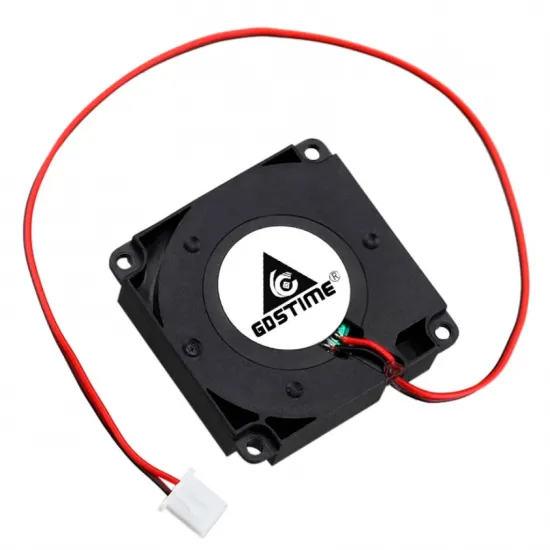

GDSTIME 4010 12V Ball Bearing Blower Fan with 20 cm Cable

GDSTIME 4010 12V centrifugal blower fan with a ball bearing system and a 20 cm cable. It provides directed airflow through compact cooling ducts used in 3D printers, electronic equipment and small machines.

The ball bearing system is appropriate for frequent or extended operation, particularly where reduced wear is preferred over a basic sleeve-bearing fan.

Key features

• Brand: GDSTIME.
• Type: centrifugal blower fan.
• Nominal dimensions: 40 × 40 × 10 mm.
• Rated voltage: 12V DC.
• Rated current: 0.10A ±10%.
• Rated speed: 8000 RPM.
• Rated airflow: 2.93 CFM.
• Rated noise level: 28 dBA.
• Ball bearing system.
• Two-wire connection.
• Approximate cable length: 20 cm.
• Approximate weight: 15 g.

Applications

• Part cooling in 12V 3D printers.
• Air ducts for print heads.
• Localised electronics cooling.
• Robotics, automation and custom projects.

Compatibility

It is dimensionally compatible with many assemblies designed for 4010 centrifugal fans, but mounting-hole positions, outlet orientation, available space and duct geometry must all be checked.

Do not connect this fan directly to a 24V supply. For a 24V machine, use the GDSTIME 4010 24V version or a correctly rated voltage converter.

Installation and control

Check the supply voltage and polarity before connection. Wire colours provide a useful indication, but the pinout of both the connector and controller should always be verified.

When using PWM control, configure a minimum value that allows the fan to start consistently. After changing the wiring or firmware settings, perform a functional test before starting a print or extended operation.

Package contents

• 1 × GDSTIME 4010 12V centrifugal blower fan with 20 cm cable.
