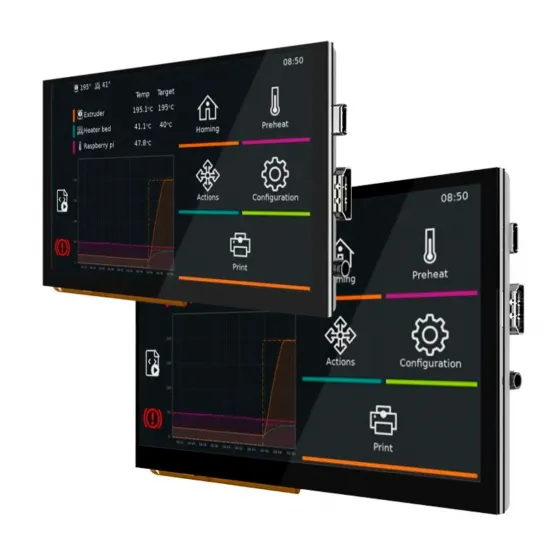

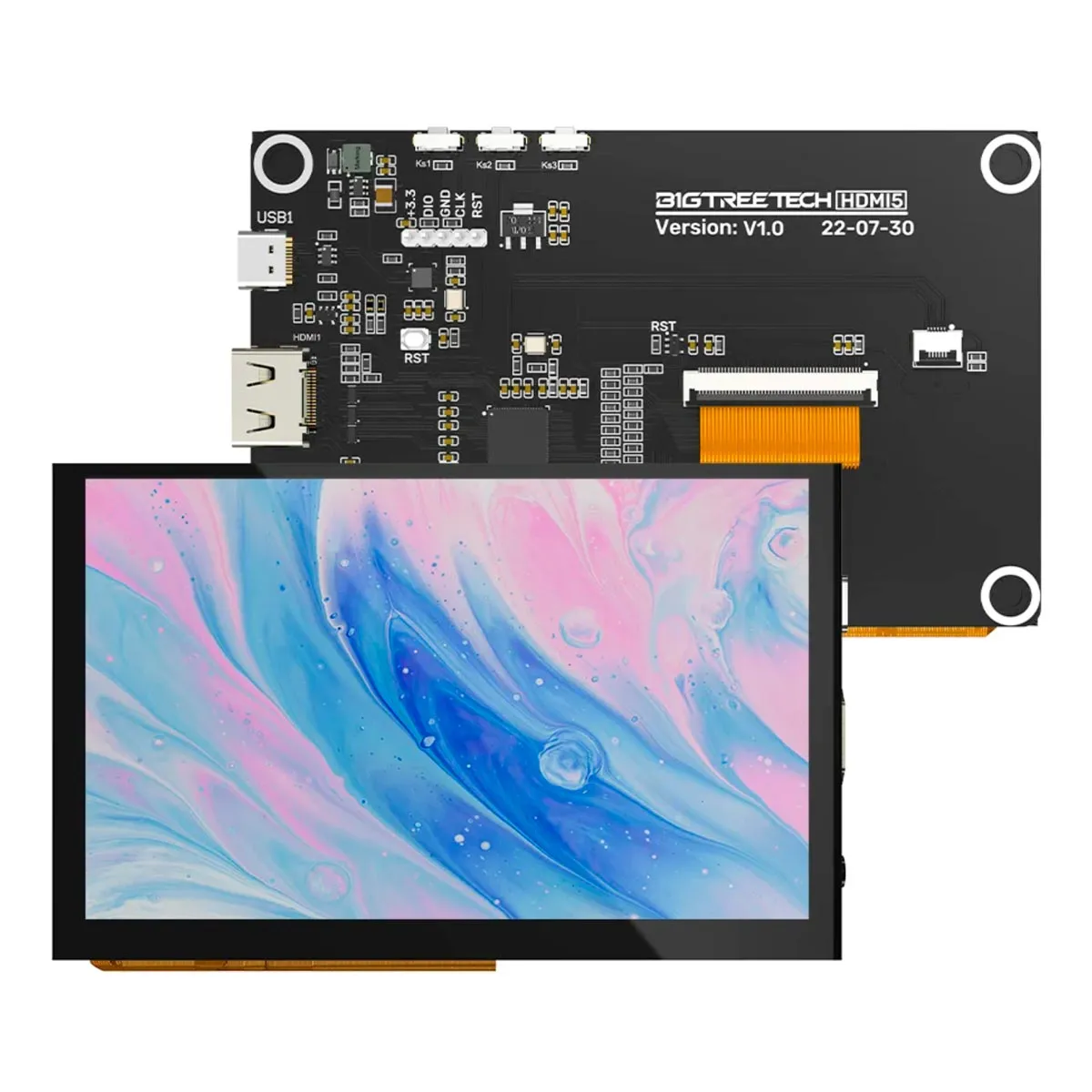

BigTreeTech HDMI5 5-inch IPS Capacitive Touchscreen
The BigTreeTech HDMI5 is a 5-inch IPS capacitive touchscreen for displaying the interface of equipment with HDMI output. It can be used as a monitor with a Raspberry Pi, mini PC or other compatible computer, and is useful in 3D-printing projects with Klipper and other systems that provide a compatible graphical interface.
Features
- Display: 5-inch IPS panel.
- Resolution: 800 × 480 pixels.
- Video input: HDMI.
- Touch: capacitive, up to 5 points depending on the operating system and configuration.
- Power: 5 V DC.
- Touch interface: USB Type-C.
- Audio: integrated decoding with 3.5 mm output.
- Specified viewing angle: 160°.
- Brightness: adjustable.
- Nominal mounting size: 121 × 76 mm.
HDMI carries the image. To use the touch function, connect the USB touch port to the host and make sure the operating system provides the required support.
The display does not replace the computer, Raspberry Pi or control board that generates the interface. Before mounting, check for HDMI output, suitable 5 V power and enough space for the mounting size.
Who is it for?
- Raspberry Pi, mini PC or other HDMI-output projects.
- 3D-printing interfaces running on the host system.
- Users needing a compact display with touch control and audio.
Who is it not for?
- Users looking for a display that connects directly to any board without HDMI output.
- Systems without stable 5 V power.
- Installations where USB touch support and the touch connection cannot be provided.
The 7-inch HDMI7 provides a larger screen and higher resolution; see the HDMI7 version.
