BigTreeTech HDMI7 7-inch IPS Capacitive Touchscreen
58.34€
Ex Tax: 48.21€
- Stock: 3
- Model: HDMI7-BTT
Model:
HDMI5
HDMI7

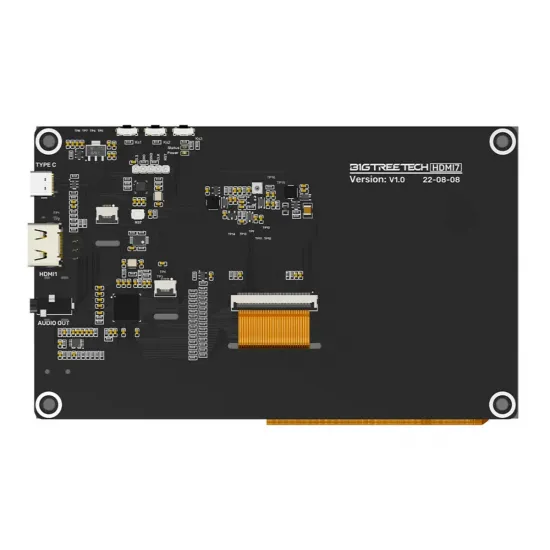

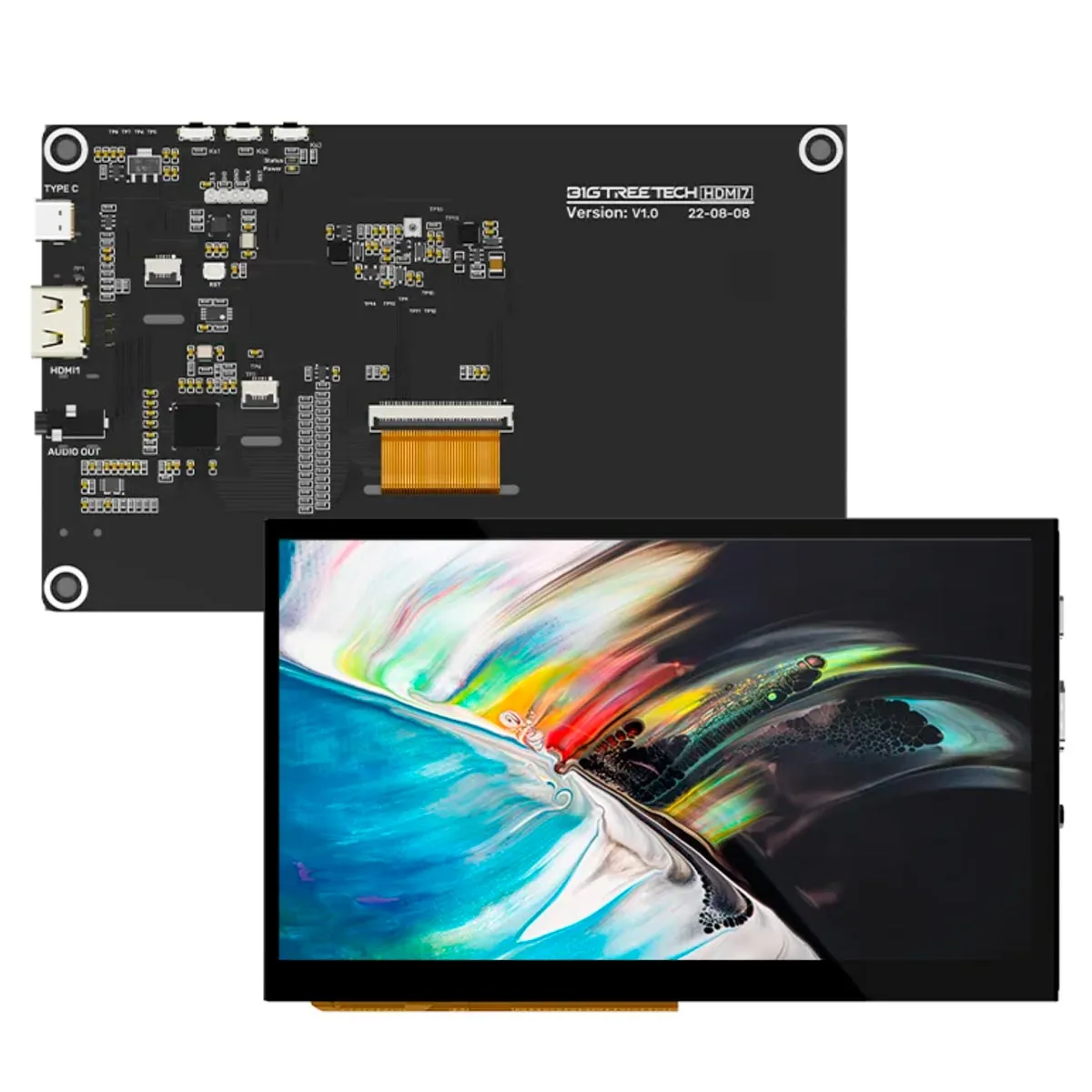

BigTreeTech HDMI7 7-inch IPS Capacitive Touchscreen V1.2
The BigTreeTech HDMI7 is a 7-inch IPS capacitive touchscreen with HDMI input. It is designed to work as a monitor for a Raspberry Pi, mini PC or other compatible host, for example to display control interfaces in 3D-printing projects.
Features
- Display: 7-inch IPS panel.
- Resolution: 1024 × 600 pixels.
- Video input: HDMI.
- Touch: capacitive, up to 5 points depending on the operating system and configuration.
- Power: 5 V DC.
- Touch interface: USB Type-C.
- Audio: integrated decoding with 3.5 mm output.
- Specified viewing angle: 160°.
- Brightness: adjustable.
- Nominal mounting size: 100 × 165 mm.
HDMI carries the image and the USB touch connection sends touch input to the host. Both functions depend on the hardware, operating system and configuration.
Before mounting, check for HDMI output, suitable 5 V power and enough space for the mounting size. Do not connect it directly to a 3D-printer board without a compatible video interface.
Who is it for?
- Raspberry Pi, mini PC and other HDMI-output projects.
- 3D-printing interfaces running on the host.
- Users who prefer a larger display area than the HDMI5.
Who is it not for?
- Users looking for a display directly compatible with every 3D-printer board.
- Systems without stable 5 V power and HDMI output.
- Installations where USB touch support cannot be provided.
If you need a more compact display, see the 5-inch HDMI5 version.
